Product Introduction

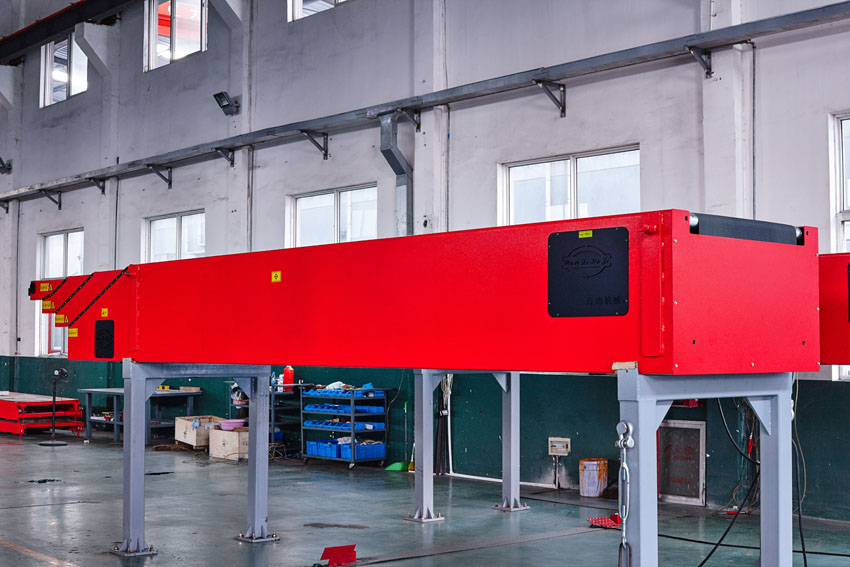

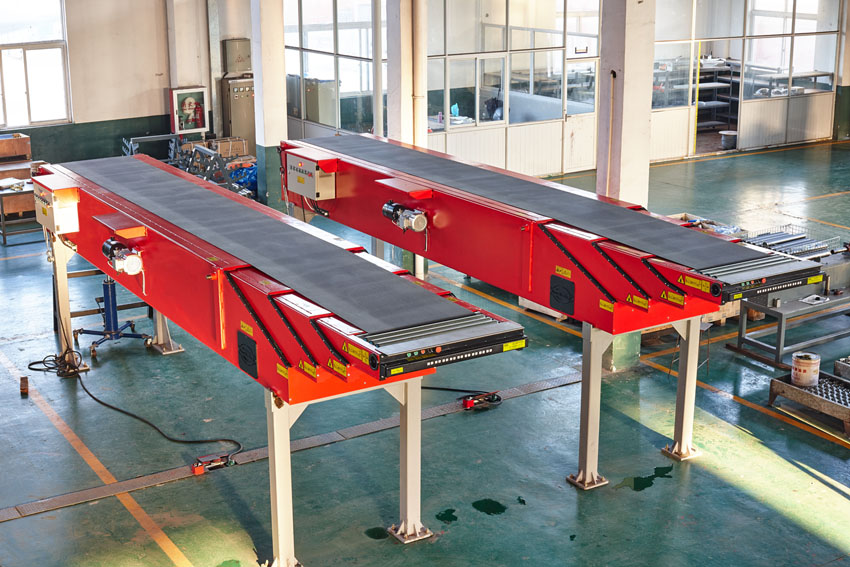

We focus on the efficiency of the machine, but we never at the expense of reducing safety performance. We focus on the price of the equipment, but we never to reduce the quality to achieve their goals. We have a professional tooling equipment, improve the fixture, so that more modular production, Wandi manufacturing is an economic choice. Telescopic distance up to 16.5 meters of the telescopic belt conveyor to complete a variety of freight vehicles loading / unloading. We are a supplier of high quality retractable belt conveyor.
Telescopic conveyors can be used to load trains or containers of longer passenger cars, shorten the distance of manual reciprocating materials, shorten the time of loading and unloading, reduce labor intensity, reduce damage to goods, reduce loading and unloading costs and improve labor efficiency. Particularly suitable for labor intensity, complex goods, operating environment, poor industries, such as express delivery, postal services, logistics and other places.
Excellent performance
Selection of elegant, excellent quality, to create quality, intentions "quality" made
Focus on safety
In order to prevent accidents on the equipment to do the smallest gap and a safe cover, including the chain and other moving parts are safe.
Humanized operation
The operator can adjust the telescopic and height of the machine through a lever to achieve the optimum job position.
Option configuration
Appropriate options to meet the different needs of individual, such as: hydraulic lift, length, height and so on.
产品参数/Product parameters | |||
Conveyor width | 800mm | Telescopic drive | Gear reduction motor |
Conveyor model | Straightening belt (West Green) | Speed | 25-35m/min |
Conveyor direction | Loading or unloading direction | Load | 60kg/m² |
Conveyor angle | 0-4° | Machine height | 900m |
产品目录/Product Catalog | ||||||
Model | Retracted length(L1) | Extension length(L2) | Total length(L) | Machine height(A) | Total width(B) | Belt width |
2 sections | 6000 | 5000 | 11000 | 321 | 1106 | 800 |
3 sections | 6000 | 8000 | 14000 | 550 | 1140 | 800 |
4 sections | 6000 | 12000 | 18000 | 720 | 1190 | 800 |
4 sections | 7000 | 15000 | 22000 | 720 | 1190 | 800 |
Detailed description:

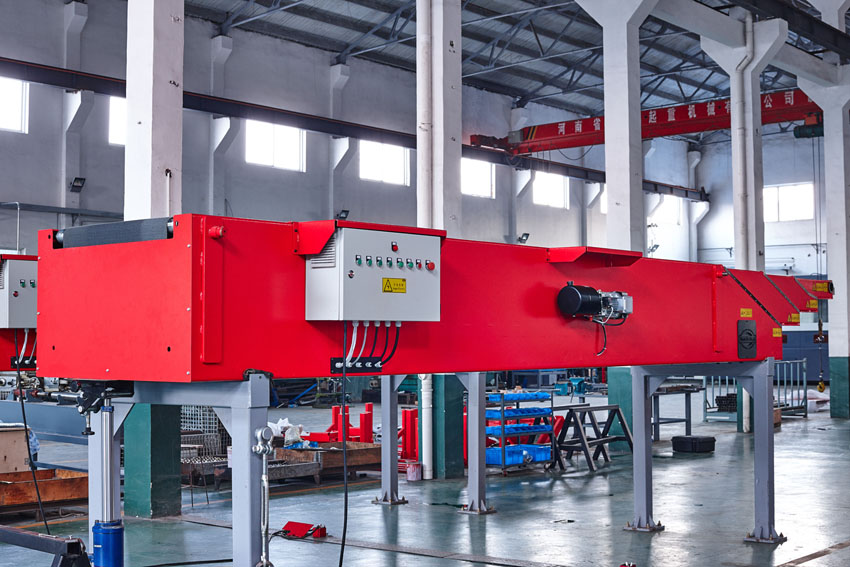

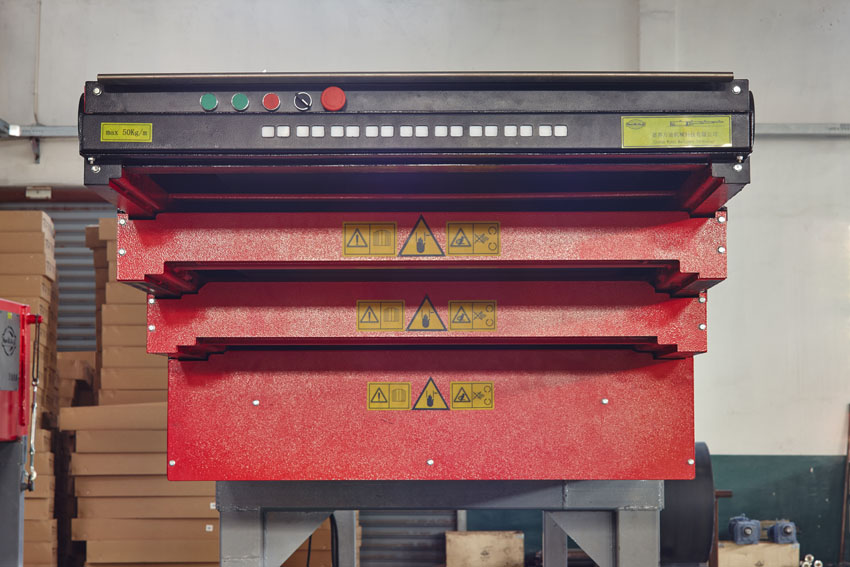

Control panel: machine front control panel with start and stop button and mushroom head emergency stop, easy operation.
Touch-type stop: the front is flexible and reliable touch-type mechanical stop device design, so that operators are more at ease. Built-in LED lighting for the car to provide the best operating environment.

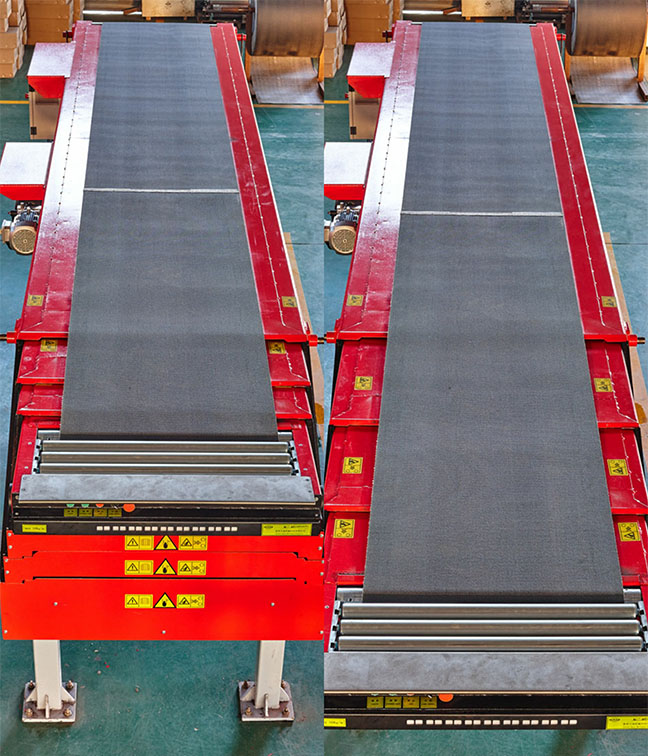

Joystick: placed on both sides of the front end of the belt machine, push the lever to extend the machine, keep the thrust to ensure safe operation.
Surface treatment: the overall spray treatment, high-quality plastic powder, anti-scratch anti-smashing.
Safety features: emergency stop button at the front and rear of the machine; safe ejector roller at the front of the machine (no power); all active parts are safe, including the bottom of the machine; rubber brush and rubber cover to prevent clasp; Located at the front of the machine.
Signal exchange: The retractable belt conveyor can transmit signals to and from the parcel processing system.
Installation temperature：0-40ºC
Environment: Humidity 35-85% rH
Noise: 70dB (A) (this is the maximum, measuring distance: 1 meter)
Hydraulic lifting: can be adapted to different models.
Color: Customers only need to provide color or swatches.
Speed: Adjustable transfer speed.
